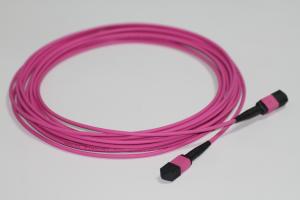

Multimode Duplex Fiber Optic Cable APC To APC , LSZH Female Mpo Patch Cord

Name: Multimode Duplex Fiber Optic Cable APC To APC LSZH Female Mpo Patch Cord
Brand: SUNWISE
Price: 1 USD

Brand Name : SUNWISE

Model Number : MPO/APC

Place of Origin : MADE IN CHINA

MOQ : Negotiable

Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment

Application : Telecommunication

Fiber type : G657A2, G652D, OS1 ,OM1,OM2,OM3,OM4

Certification : ISO9001

Connector : MPO/MTP

Cable type : 12F

Fiber mode : SM/MM

Price : Negotiable

Packaging Details : jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft

Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days

Payment Terms : Western union,T/T,PayPal

Contact Now

Multimode Duplex Fiber Optic Cable APC To APC , LSZH Female Mpo Patch Cord

MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 10/40/100G high-density data center applications.

Product Specifications

Connector A	MPO Female (pinless)	Connector B	MPO Female (pinless)
Fiber Mode	OS2 9/125 μm SM	Wavelength	1310/1550 nm
Polish Type	APC to APC	Minimum Bend Radius	10 mm
Insertion Loss	0.35 dB Max. (0.15 dB Typ.)	Return Loss	≥ 60 dB
Attenuation at 1310 nm	≤ 0.32 dB/km	Attenuation at 1550 nm	≤ 0.18 dB/km
Jacket OD	3.0 mm	Cable Jacket	LSZH
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Storage Temperature	-40°C to 85°C	Operating Temperature	-10°C to 70°C

Application:

Telecommunication;
CATV, FTTH, LAN;
Fiber optic sensors;
Optical transmission system;
Test equipment.

Our Services

1. Professional manufacturer, 100% tested.

2. Customers solutions in days, not weeks.

3. Warmly services with careful attentions.

4. Can provide your specific inquiry within 24 hours.

5. Save much costs, bring more benefit for customer to expand business.

6. We have been----years experience in this field. We are the prefessional supplier that you can trust.

Features:
• Low insertion loss,high return loss
• Good Compatibility
• High precision of mechanical dimensions
• High reliability&stability
• PC,APC,UPC optional,cable length optional
